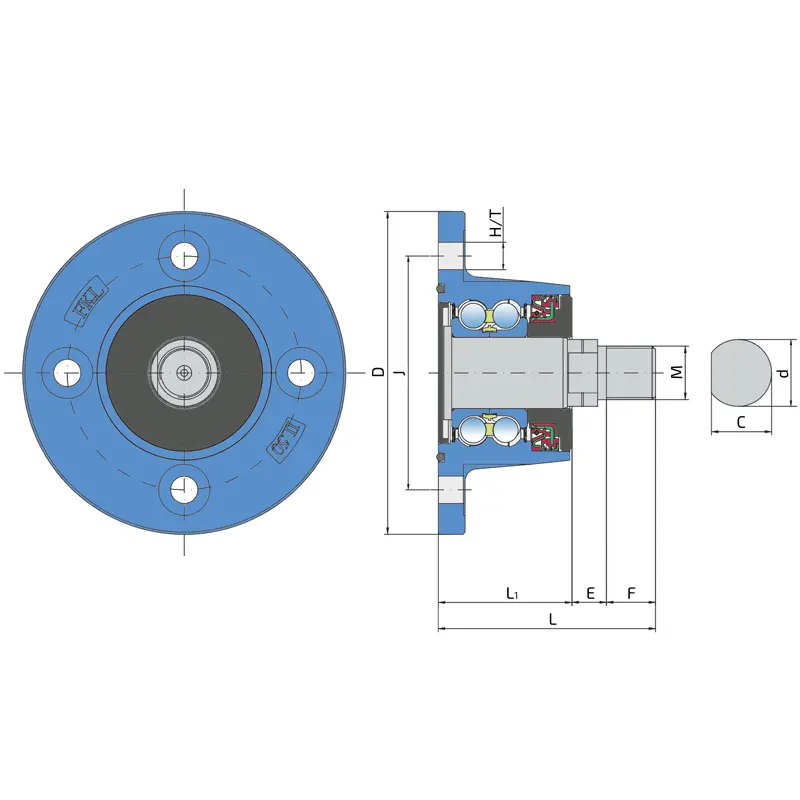

| J Pitch circle diameter | 105 mm |
| D Outside diameter | 145 mm |
| H/T Hole/Thread | 4x12.3 mm |
| d Shaft diameter | 30 mm |
| C D-shape hole cut out dimension | 27 mm |
| M Outher Thread | M24x1.5-LH mm |
| L Total length | 97.5 mm |
| L1 Total flange length | 60 mm |
| E Length of D shape | 15.5 mm |
| F Length of threaded part | 22 mm |
| kg Mass | 3.1 kg |
| Cdyn Dynamic load rating | 60 kN |
| Co Static load rating | 45.8 kN |
| Pu Fatigue load limit | 1.92 kN |
